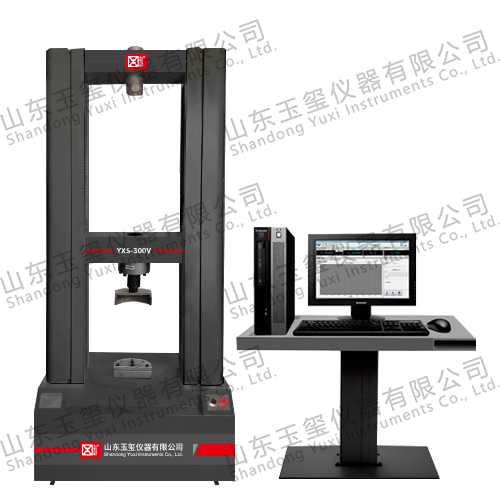

YXS 系列 制动衬片剪切强度试验机


一、简介

       YXS-100/300V 系列制动衬片剪切强度试验机用来测定盘式片与背板、鼓式片与蹄铁的粘接强度,盘式片或粘接型鼓式制动蹄片粘结强度是一项非常重要的指标,当车辆行驶中一旦出现脱片现象,将导致制动系统失效、造成严重后果。

YXS-100 / 300V series brake pad/lining shearing strength testing machine is used to measure the bonding strength between pad and back plate of disc brake ,lining and shoe of drum brake.



二、说明及使用范围

1、YXS-100/300V 系列制动衬片剪切强度试验机可对制动衬片及复合材料进行力学剪切性能测试和分析研究,更换不同规格的辅具可进行各种型号的制动衬片进行剪切强度的检测。广泛用于航天航空、高铁动车、轨道交通、机动车零部件、车辆(大巴车、轿车、货车、卡车、摩托车、电动车)、电梯、石油钻机等制动衬片相关行业。

YXS-100 / 300V series brake pad/lining shearing strength testing machine can test and analyze the mechanical shear performance of brake linings and composite materials. It can test the shear strength of various types of brake linings by replacing auxiliary devices of different specifications. It is widely used in aerospace, high-speed trains, rail transit, motor vehicle parts,vehicles (buses, cars, trucks, motorcycles, electric vehicles), elevators, oil drilling rigs and other brake lining related industries.

2、该试验机采用计算机伺服控制、采集、分析和处理试验数据,绘制试验曲线,并可打印试验报告。

The testing machine adopts computer servo control, collecting, analyzing and processing test data, drawing test curves and printing test reports.

3、可根据客户需求定做各种规格盘式和鼓式制动块(蹄)总成剪切夹具。

Various specifications of disc and drum brake shoe assembly shear fixture can be customized on demand.


 三、执行标准

GB 5763-2018《汽车用制动器衬片》

GB/T 22309-2008《道路车辆 制动衬片 盘式制动块总成和鼓式制动蹄总成剪切强度试验方法》

QC/T 227.2-2009《摩托车和轻便摩托车制动片粘结剪切强度试验方法》

GB/T 26741-2011《机动三轮车用制动器衬片》

GB/T 11834《工农业机械用摩擦片》

SY/T 5023《石油钻机用刹车块》


ISO 6312 Road vehicles- Brake linings-Shear strength of disc brake pad and drum brake shoe assemblies-Test procedure

ISO 6311  Road vehicles-Brake linings-Internal shear strength of lining material-Test procedure

SAE J840  Test Procedures for Brake Shoe and Lining Bonds


四、技术参数

1、规格 Model:YXS-100/300V

2、精度 Accuracy:0.5%

3、最大负荷Capacity:100 kN / 300 kN

4、压头加载速率 Load rate:4500±500 N/s

5、最大可测剪切面积 Maximum measurable shear area:12000 mm² / 45000 mm²

6、超载保护 Overload protection:过载 10% 时自动保护 Automatic protection at 10% overload

7、压头移动速率 Cross head speed :< 10±1 mm/min,可调 adjustable

8、电机 Power:AC220V±10%

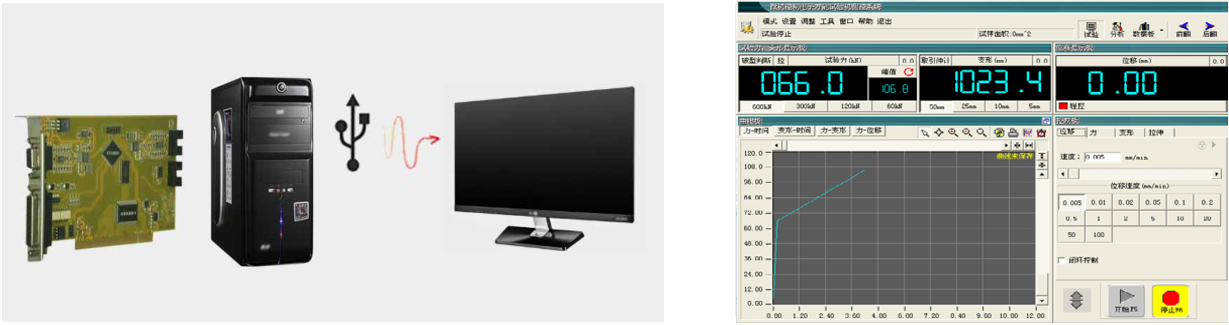

五、软件的性能特点

实时曲线显示,报表、曲线处理,曲线图像化,软件结构模块化,数据的存储和处理基于 MS-ACCESS 数据库,便于与 OFFICE 等办公软件连接。

Real-time curve display, report form, curve processing, curve visualization, modular software structure, data storage and processing based on MS-ACCESS database, easy to connect with office software such as OFFICE.


1、用户权限分级管理模式,用户登陆后,系统根据其权限开放相应的操作功能模块。

User authority hierarchical management mode, after the user logs in, the system opens the corresponding operation function modules according to their authority.

2、拥有强大的试验管理功能,试验单位可根据需求任意设定。可根据不同用户的标准需求添加相应的试验方案,试验时只要选择相应的试验方案,即可根据标准要求完成试验,并输出满足标准要求的试验报告。

With powerful test management functions, test units can be set freely according to requirements. Corresponding test schemes can be added according to the standard requirements of different users. As long as the corresponding test scheme is selected during the test, the test can be completed according to the standard requirements and a test report meeting the standard requirements can be output.

3、强大的曲线分析功能,可选择负荷 - 变形、负荷 - 时间等多种曲线,实时显示其中一种或多种。同组试样的曲线可使用不同颜色迭加对比,遍历曲线,试验曲线上的任意段可进行局部放大分析,并且支持在试验曲线上显示和标注各特征点,还可以在曲线上自动或手动取点进行对比分析,标注了特征点的曲线亦可以在试验报告中打印输出。

Powerful curve analysis function. You can choose load-deformation, load-time and other curves and display one or more of them in real time.The curves of the same group of samples can be superimposed and compared with different colors, traverse the curve, any section of the test curve can be partially enlarged and analyzed, and support to display and mark each characteristic point on the test curve, and can also be automatically or manually on the curve Take points for comparative analysis, and the curve with characteristic points can also be printed out in the test report.

4、具有试验数据模糊查询功能,可根据不同的条件快速查找所完成的试验数据和结果,实现试验结果再现,还可将不同时间或批次进行的同一试验方案的数据合并打开,进行对比分析。同时具备强大灵活的自定义报表编辑、设置功能,由用户高度自定义根据不同要求设计报表。

It has the function of fuzzy query of test data, which can quickly find the completed test data and results according to different conditions, and realize the reproduction of test results. It can also merge and open the data of the same test plan conducted at different times or batches for comparative analysis. At the same time, it has powerful and flexible custom report editing and setting functions, which can be highly customized by users to design reports according to different requirements.

5、MS-ACCESS 数据库保存格式与软件的扩展能力,软件基于 MS-ACCESS 数据库,可与 Office 办公软件接口,将报告存储为 WORD 格式或 EXCEL 格式;另外使原始数据得以开放,用户可通过数据库查阅原始数据,便于材料研究。

The storage format of MS-Access database and the expansion ability of the software. The software is based on MS-Access database and can interface with office software to store reports in word format or excel format. In addition, the original data can be opened, and users can access the original data through the database, which is convenient for material research.

6、自动校准:可按所加标准值自动标定。

Automatic calibration: it can be calibrated automatically according to the added standard value.

7、量程模式:全量程不分档

    1)模块单元:多种附件灵活互换,模块化的电气硬件便于功能扩展和维修;

    2)自动切换:试验过程中显示曲线根据试验力和变形量大小自动变换量程。

      Range mode: full range without grading

      1) Module unit: various accessories can be exchanged flexibly, and modular electrical hardware is convenient for function expansion and maintenance.

      2) Automatic switching: during the test, the display curve automatically changes the range according to the test force and deformation.
